Your Voice Communication Link in an Emergency

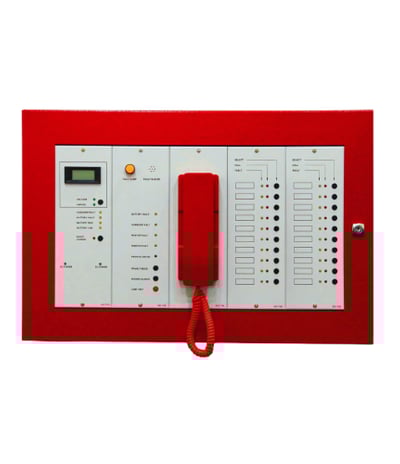

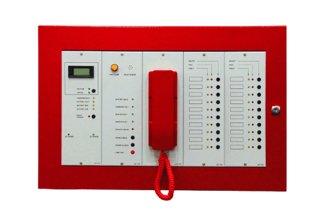

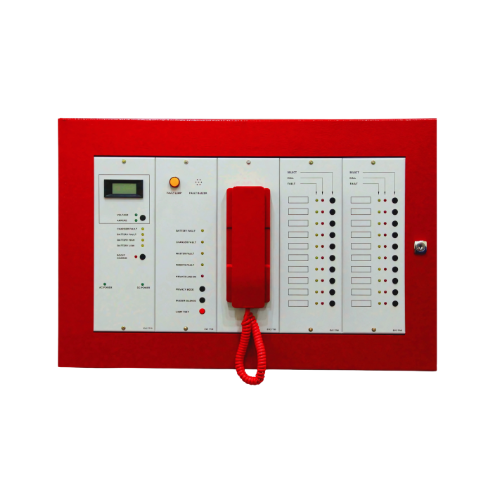

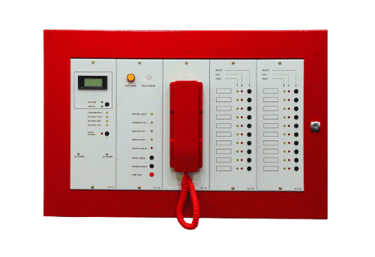

The EVC 7000 Series provides two-way communication between remote telephone handsets located throughout a building and the master telephone handset at the fire command centre. It uses a point-to-point configuration, with a central controller and remote handset zones radiating from it — a straightforward, proven architecture for buildings that don't need addressable zoning.

Designed for fire safety managers, fire wardens, fire service personnel, persons with disabilities, or any other emergency situation requiring immediate two-way voice contact with the fire command centre.

• Point-to-point configuration with central controller and radiating handset zones
• Digital Volt-Ampere metering, charger/battery/master/remote fault indication
• Privacy mode, buzzer silence, lamp test, boost charge with auto cut-off
• Optional digital recorder: 240GB storage, 2-channel WAV recording, ~650 hours
• Remote stations available in steel or 304 stainless steel, surface or flush mount
• Conforms to Singapore Standard SS 546:2009 — Code of practice for EVC systems in buildings

Addressable Communication, Built to Scale

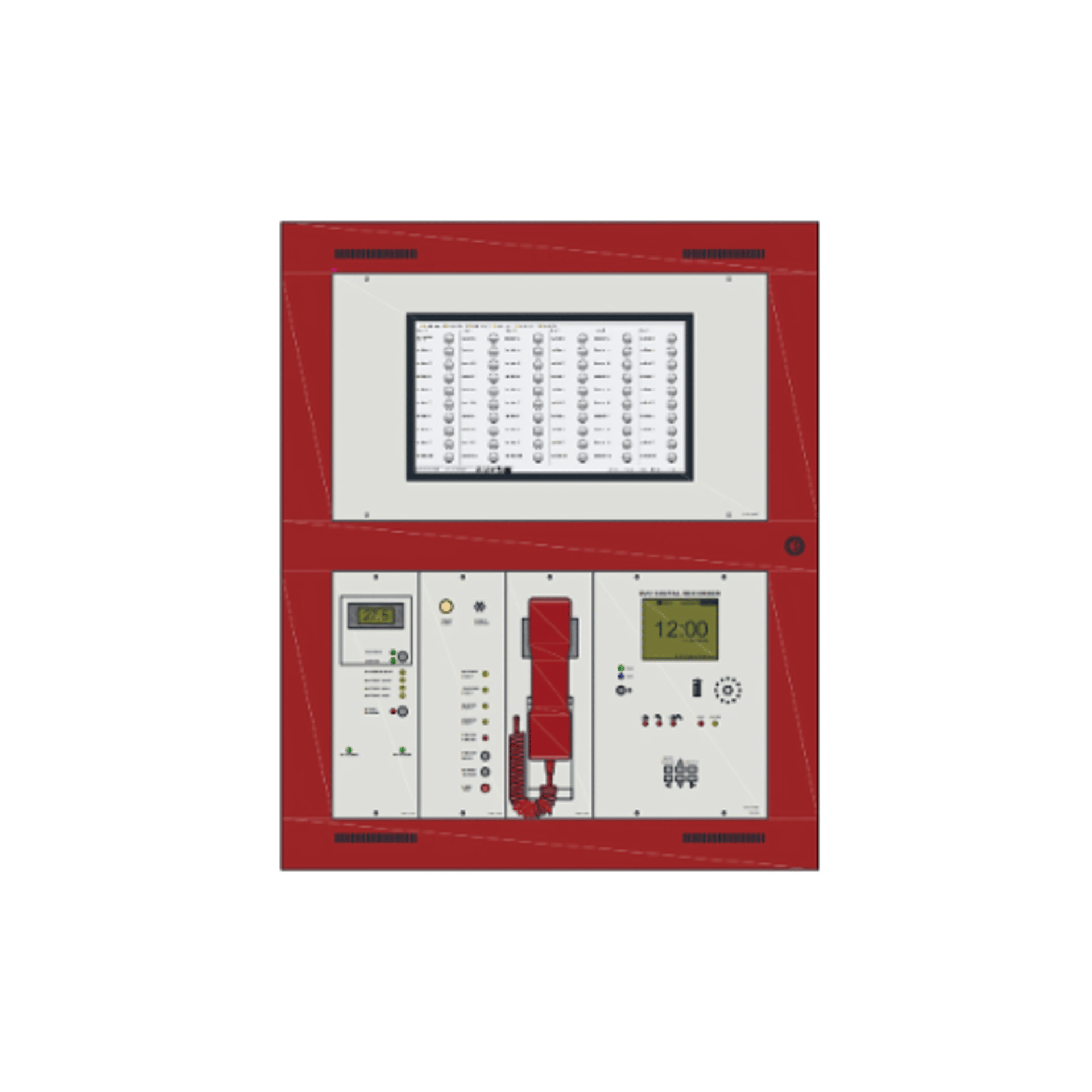

The EVC 9000 Series provides two-way emergency voice communication between remote handsets and the master console at the fire command centre. Using RISC microprocessor-based addressable technology, it offers far more flexibility in system configuration than a point-to-point system — ideal where cable runs are long, or a development spans multiple towers, floors, or risers.

Built for fire safety managers, fire wardens, fire service personnel, persons with disabilities, or any other emergency situation.

• Addressable configuration — screened twisted-pair FR cable for data, voice, and power
• Expandable up to 150 zones or 15 Remote Control Units via CPU Combiner (max 3 CPU, 5 selector modules)
• 30 zones per Mimic Zone Selector Module, with individual Call/Fault LED per zone
• Fibre-optic remote termination option (single mode, data/audio, ST connector) for long cable runs
• Privacy mode, buzzer silence, lamp test, boost charge with auto cut-off
• Optional digital recorder: SSD storage, 2-channel WAV recording, ~650 hours

Centralised Monitoring, Instant Emergency Contact

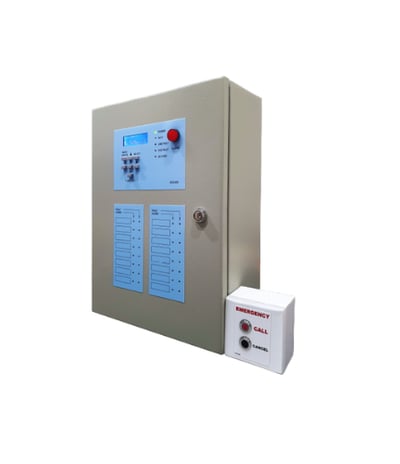

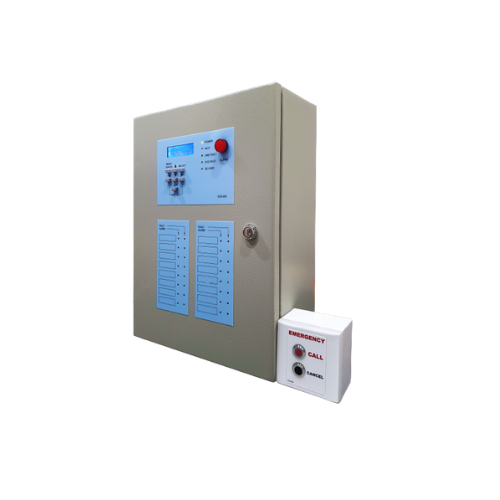

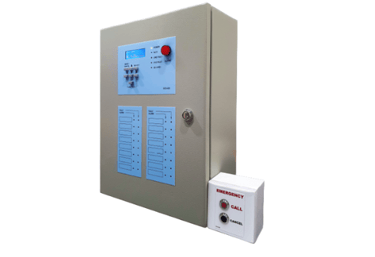

The ECS-200 Series pairs a wall-mounted controller cabinet with dedicated emergency call stations. The controller gives facilities and fire safety teams a single point of visibility over system status, line faults, and zone-level alarms, while the call station gives building occupants a direct, simple way to raise an alert in an emergency.

Suited to commercial and industrial developments that need a centralised emergency communication system integrated alongside — or interfacing with — existing fire alarm infrastructure.

• LCD status display with date/time, power, line fault, system fault and alarm indicators
• SD card logging
• Cancel / Select navigation buttons for on-panel configuration and review
• Dual zone panels, each with individual fault and alarm indicators per zone
• Key-locked cabinet access for authorised personnel only
• Wall-mounted "Emergency Call" station with dedicated Call and Cancel buttons

Full electrical and mechanical specifications will be added here once the ECS-200 catalogue is available — get in touch and our team can send over the detailed datasheet directly.
